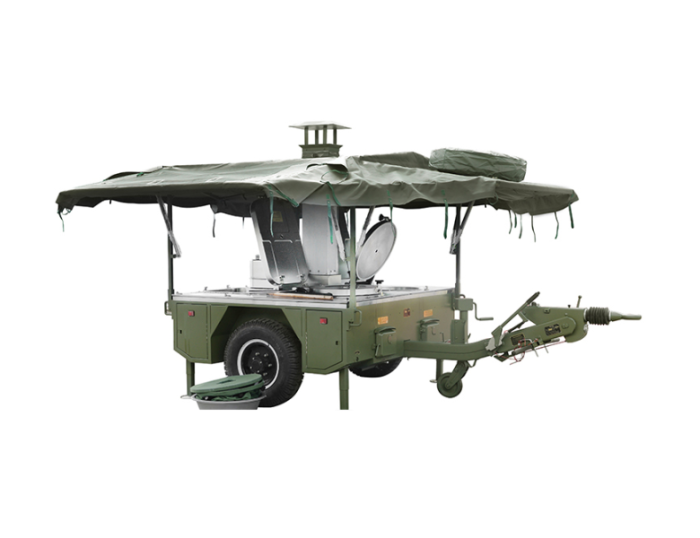

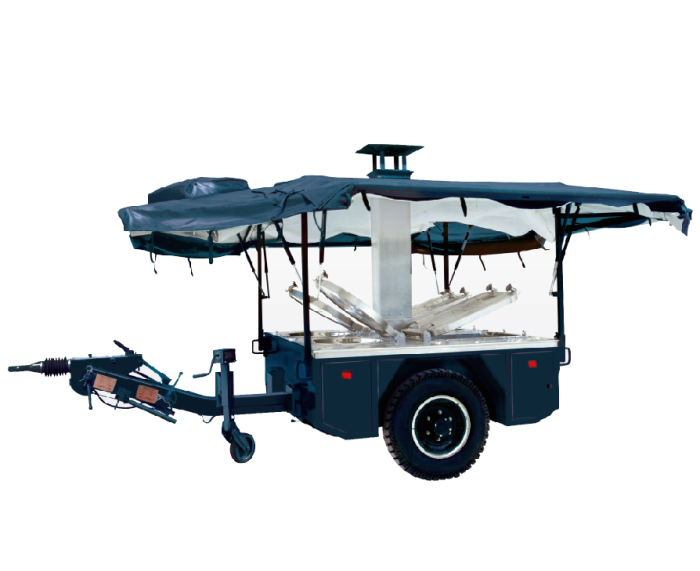

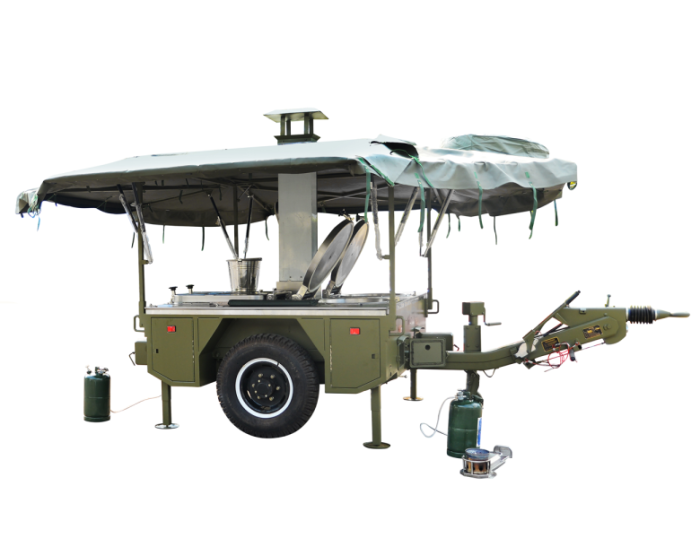

XC-150 Mobile Kitchen Trailer

Mobile Field Kitchen Trailer , Model:XC-150

Mobile Field Kitchen Trailer

It has the features of ground operation, adjustable traction height, traction suitable for various kinds of vehicles, good synchronous performance due to introduce the inertial brake system, fast unfolding and drawing-in of the tent, non-scorching appearance due to adopt inner immersion method for cooking rice.

A: package situation 4M x 2.25M x 2.42M

B: running situation

C: unfold show ,Whole weight :1850 kgs

D： Whole equipment layout Performance

(1)processing ability:rice,noodles,brea d,dishes,soup.

(2)4people control ，1hour can finish food for 150people.

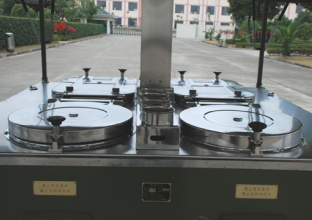

E：Staple food pans, cooking rise,soal,steaming,boiling and so on

Pot size:750×560×287mm ; volume:105L/pc

F：Non-staple food pans, cooking vegetables, stew, fry and deep-fry and so on

Diameter:ф600mm volume:55L/pc

G：Diesel furnace burner and fuel tank assembly oil consumption:1.6~2.1 kg/h work stress: 0.1~0.5Mpa reserve fuel quantity: 8L

H：blast blower ,Overall size ： 283×141×330mm,transmission ratio 52.73，

Blast capacityL270m3 /h,air supply mode:two driven by one
